Description

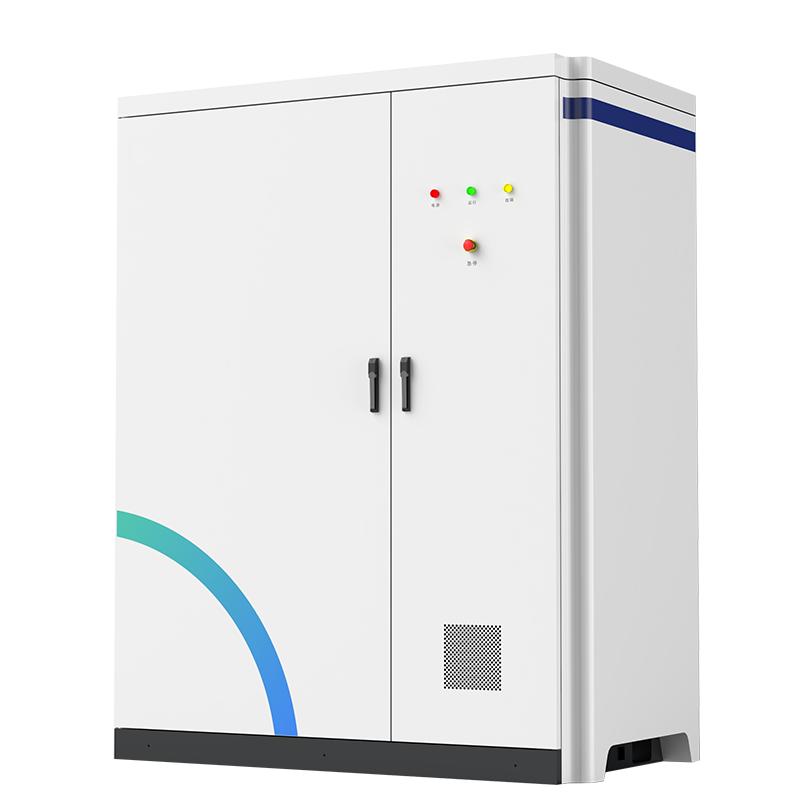

Modular system floor-standing home storage
Adopting advanced lithium iron phosphate PACK integration to optimize system control and reduce system costs
DC electrical circuit safety management, short circuit quick breaking and arc extinguishing protection
Multiple monitoring of status, hierarchical linkage, comprehensively ensuring the safety of the battery system
Adopting a modular design concept, each module operates independently, providing N+1 redundancy and improving system stability. Users can expand according to project needs, perfectly adapting to various types of batteries. The system can implement different charging and discharging strategies based on different types of batteries, extending their service life
Adopting a string structure, it can achieve rapid maintenance and replacement, and maximize the annual operating days
Efficiency improvement of 3-7%, investment return cycle improvement of 10%
Modular design
Adopting a modular design concept, each module operates independently, providing N+1 redundancy and improving system stability. Users can expand according to project needs.
Adapt to multiple types
Perfect for various types of batteries. The system can implement different charging and discharging strategies based on different types of batteries, extending their service life.
Energy adjustable
Energy scheduling can be regulated, and users can change the charging and discharging logic based on the electricity policies of different time periods in their respective regions
Independently adjustable
The product can achieve independent regulation of active and reactive power, meet different load demands, ensure power factor, and avoid fines.
Cell type LFP 280Ah
System battery configuration 260S1P
Rated capacity of battery 232kWh
Battery voltage range 728V-936V
BMS communication interface RJ45
BMS communication protocol Modbus
Rated power on AC side 100kW
AC current distortion rate<3.0% (at rated power)
DC component ≤ 0.5% (at rated power)
Grid voltage range ± 15%
Power factor 0.99 (at rated power)
Power factor adjustable range ± 0.8 settable
Rated grid frequency 50Hz
Grid frequency range ± 2.5Hz
Isolation method without isolation transformer
Size (width × high × 1750 * 2200 * 1420mm deep
Weight (including battery) 2.5T
Protection level IP54
Operating temperature range 0-60 ℃ (derating greater than 45 ℃)
Operating humidity range 0-95% (non condensing)
The highest working altitude is 2000m
Battery temperature control method liquid cooling
Inverter cooling method: liquid cooling
Fire protection system heptafluoropropane/perfluorohexanone
System communication interface RJ45
System communication protocol TCPModbus
Wrokshop
Application
